Sublim8 mounting blocks for metal prints


  • Perfect way to wall mount or table top display metal sublimation panels.
  • Provides attractive ‘floating’ look for wall mounted panels.
  • Includes metal arm for easel back display.
  • Features four holes for wall mounting.
  • Simple and quick self-adhesive design.
  • Works with any metal sublimation panel.
  • Black or brushed silver edges.
  • Variety of sizes for panels from 5” x 7” up to 20” x 24”.

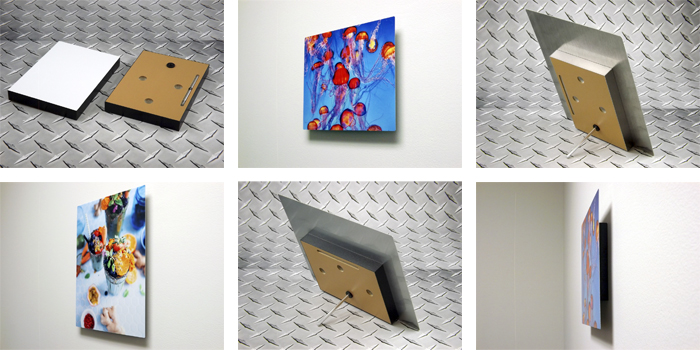

Sublim8 mounting blocks provide a quick and attractive method for wall or table top display of metal sublimation panels, and are a perfect value added way of finishing your sublimation photo prints.

The simple self-adhesive design enables assembly in a matter of seconds, and all blocks include an optional screw in metal arm for table top easel back display. The rear of each block has four centralized holes for simple wall hanging. All blocks are 0.75” deep and are available with either a lightly textured black or brushed silver edging. Sizes available include:-

4.75” x 6.75” x 0.75” for use on metal panels from 5” x 7” up to 8” x 10”.

7.75” x 9.75” x 0.75” for use on metal panels from 8” x 10” up to 11” x 14”.

10.75” x 13.75” x 0.75” for use on metal panels from 11” x 14” up to 12” x 18”.

15.75” x 19.75” x 0.75” for use on metal panels from 16” x 20” up to 20” x 24” (black edge only – silver coming soon).

For larger prints, four blacks can be mounted one on each of the rear corners for wall hanging.

Usage guidelines

  1. Very important – clean the rear surface of the metal panel first with a degreasing cleaner – we recommend paper towel and  Isopropyl rubbing alcohol available from any hardware or drug store.
  2. For wall hanging, use a pencil to make a small mark on the rear top of the panel exactly in the middle and approx 1” from the top edge. Place the panel face down on a flat solid surface. Remove the metal arm from the slot in the rear of the block and remove the black plastic bush from the hole in the panel – screwing the arm into the bush a little will help you remove the bush. The arm and bush are not needed for wall mounting and can be discarded. Remove the protection paper from the adhesive on the front surface of the mounting block, and position the adhesive side of the block over the panel lining up the top edge of the block with the pencil mark you made on the top edge of the panel and in line with the top block mounting hole. Check the mounting block edges are parallel to the edges of the panel, and press the block firmly on to the rear of the panel. Let the panel sit for 8 hours before hanging to allow the adhesive to set. Hang the panel using a wall fixing in the top mounting hole on the block.
  3. For table top display using the included metal arm, use a pencil to make a small mark on the rear bottom of the panel exactly in the middle and 3/8” from the bottom edge. Remove the protection paper from the adhesive on the front surface of the mounting block, and position the adhesive side of the block over the panel lining up the bottom edge of the block with the pencil mark you made on the bottom edge of the panel and in line with the bottom block mounting hole. Check the mounting block edges are parallel to the edges of the panel, and press the block firmly on to the rear of the panel. Let the panel sit for 8 hours before use to allow the adhesive to set. Remove the metal arm from the slot on the rear of the panel and screw the arm into the black plastic bush on the rear of the panel. The bush can be pulled out of a mounting hole and replaced into the bottom mounting hole on the rear of the block.
